Name: Wall mount for swivel arm 78 cm
Brand: vidaXL
SKU: 146504
Price: 93.99 EUR
Availability: InStock

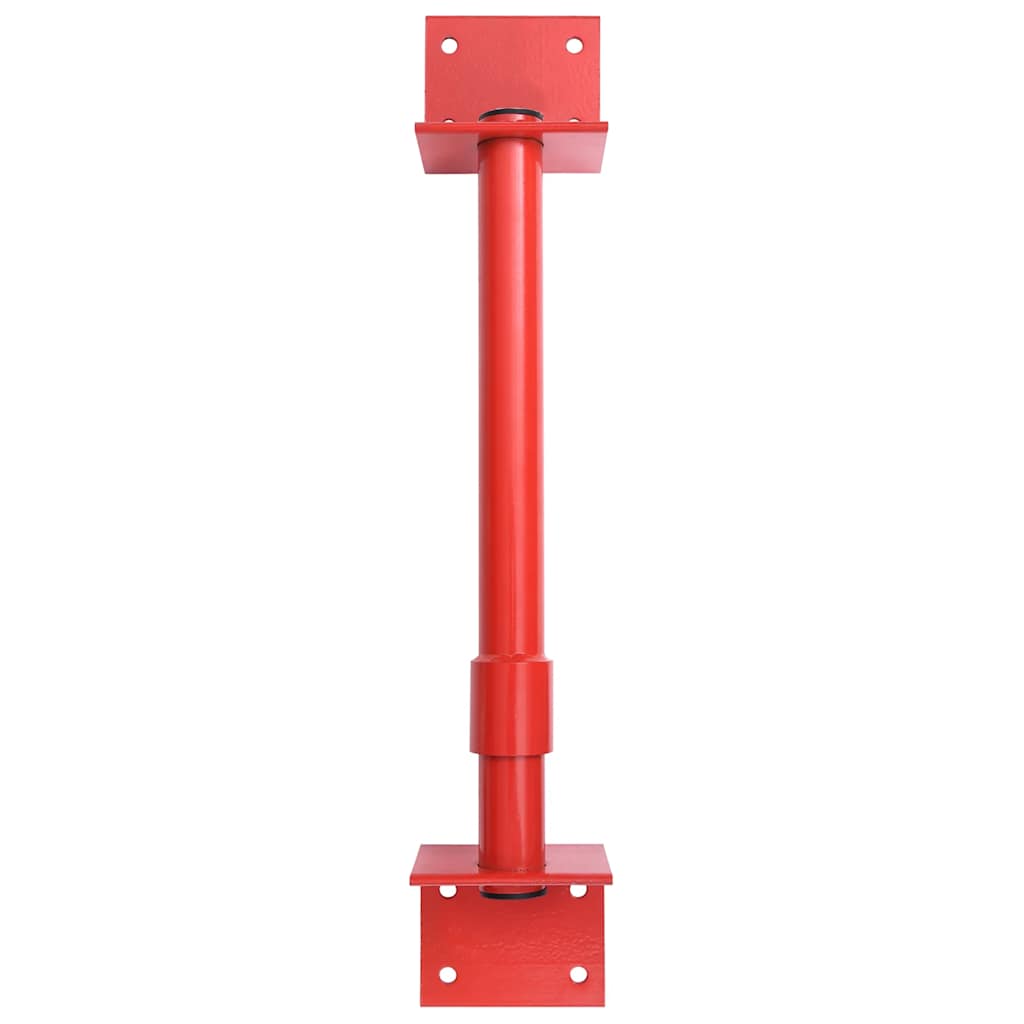

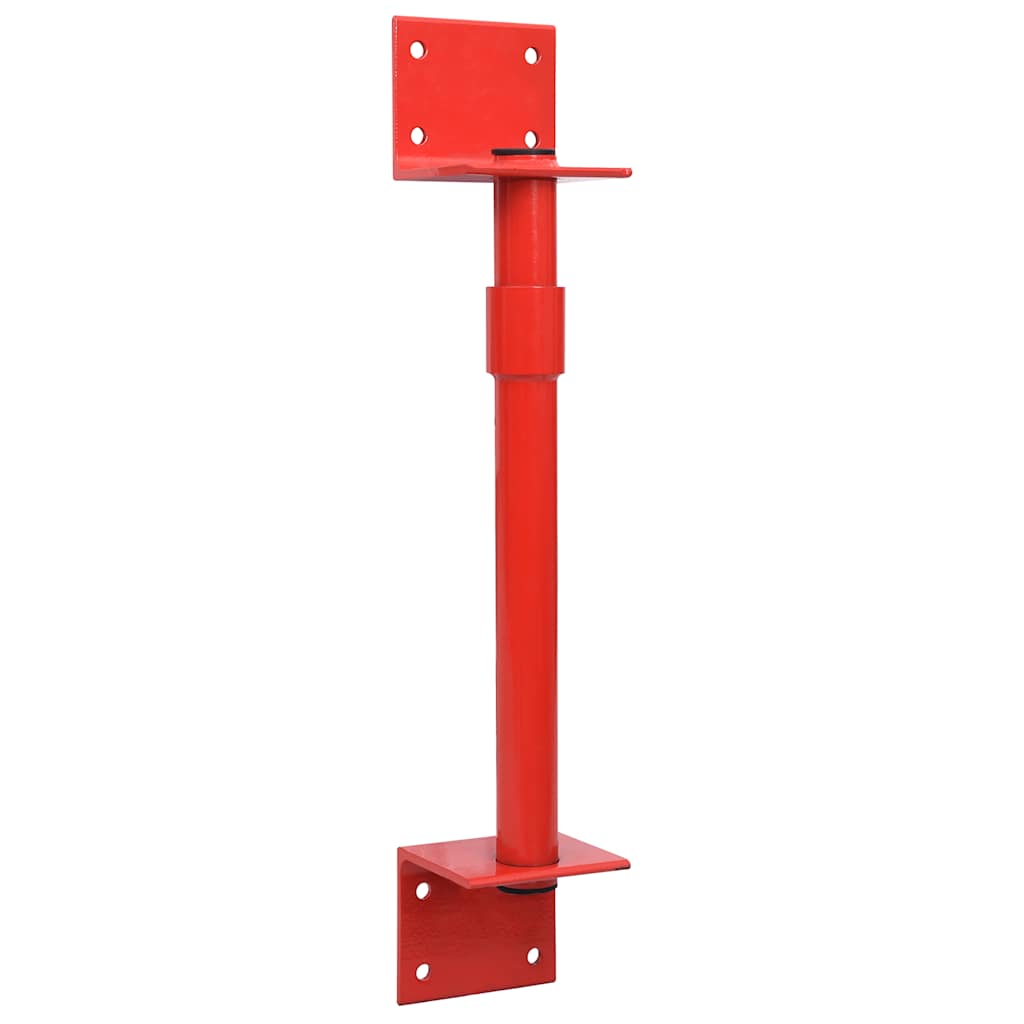

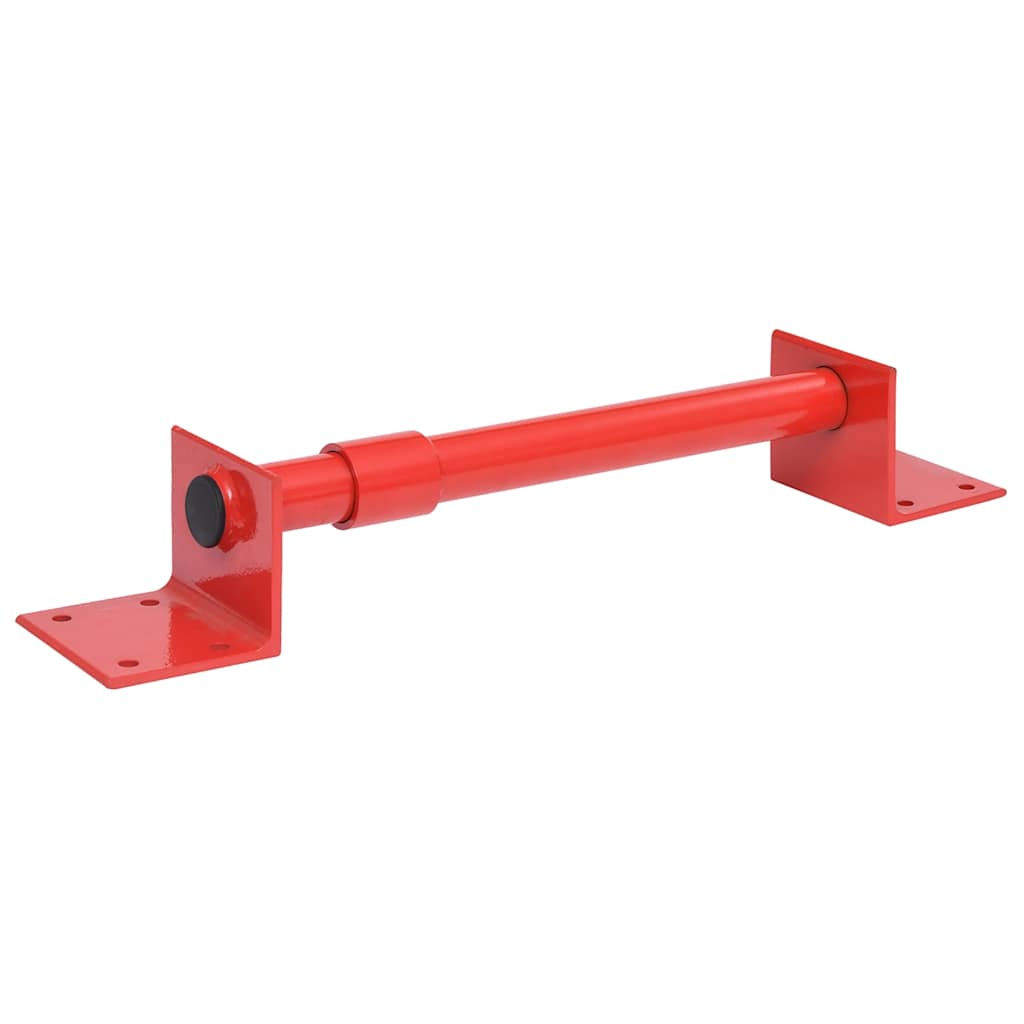

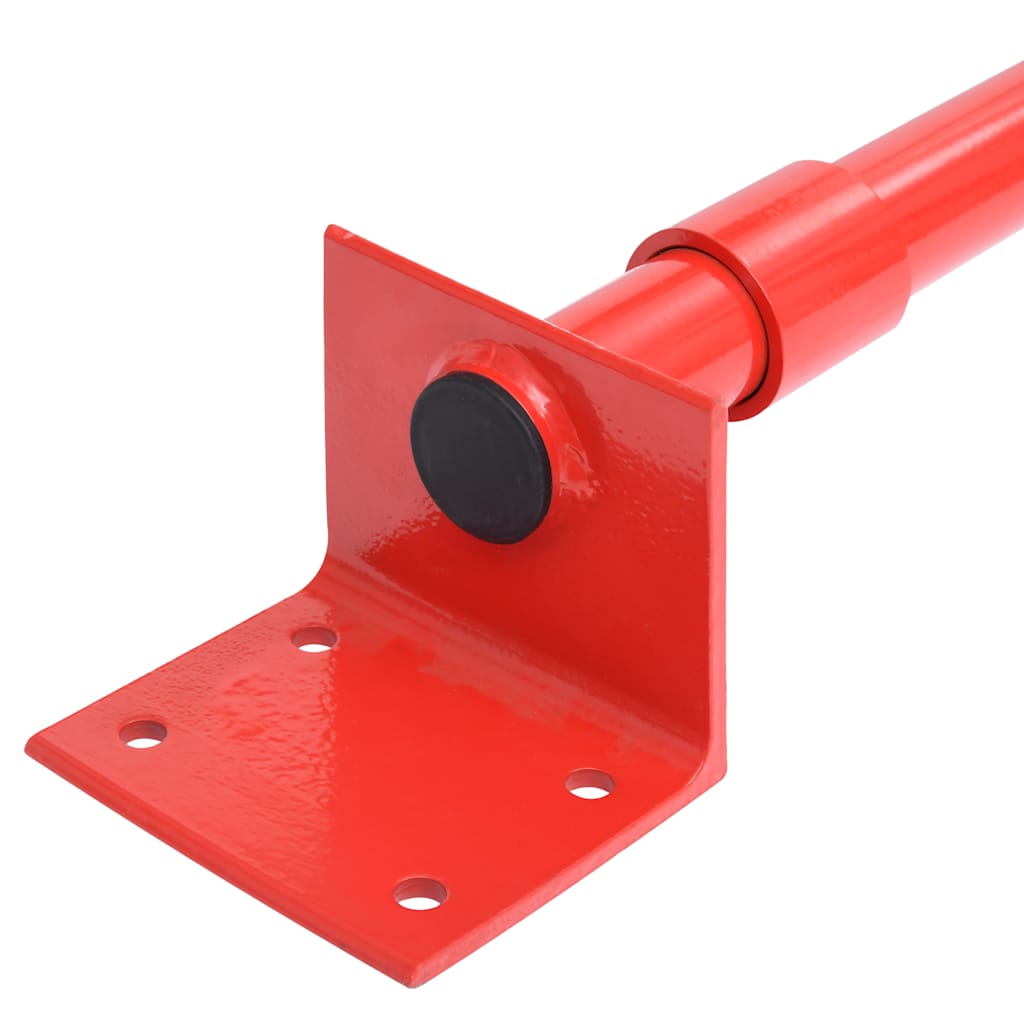

Wall mount for swivel arm 78 cm

€93,99

This wall bracket is the ideal accessory for pivoting hoist arms. Made of quality steel, this boom bracket can be loaded up to 1000 kg. The wall bracket gives the pivoting arm the necessary distance from the wall. This means that the pivoting range of almost 180° is maintained without the cable winch hitting the wall. Thanks to the pre-drilled holes, the wall bracket can be easily fixed directly to the wall. Mounting screws are included in the delivery.

Colour: Red
Material: Steel

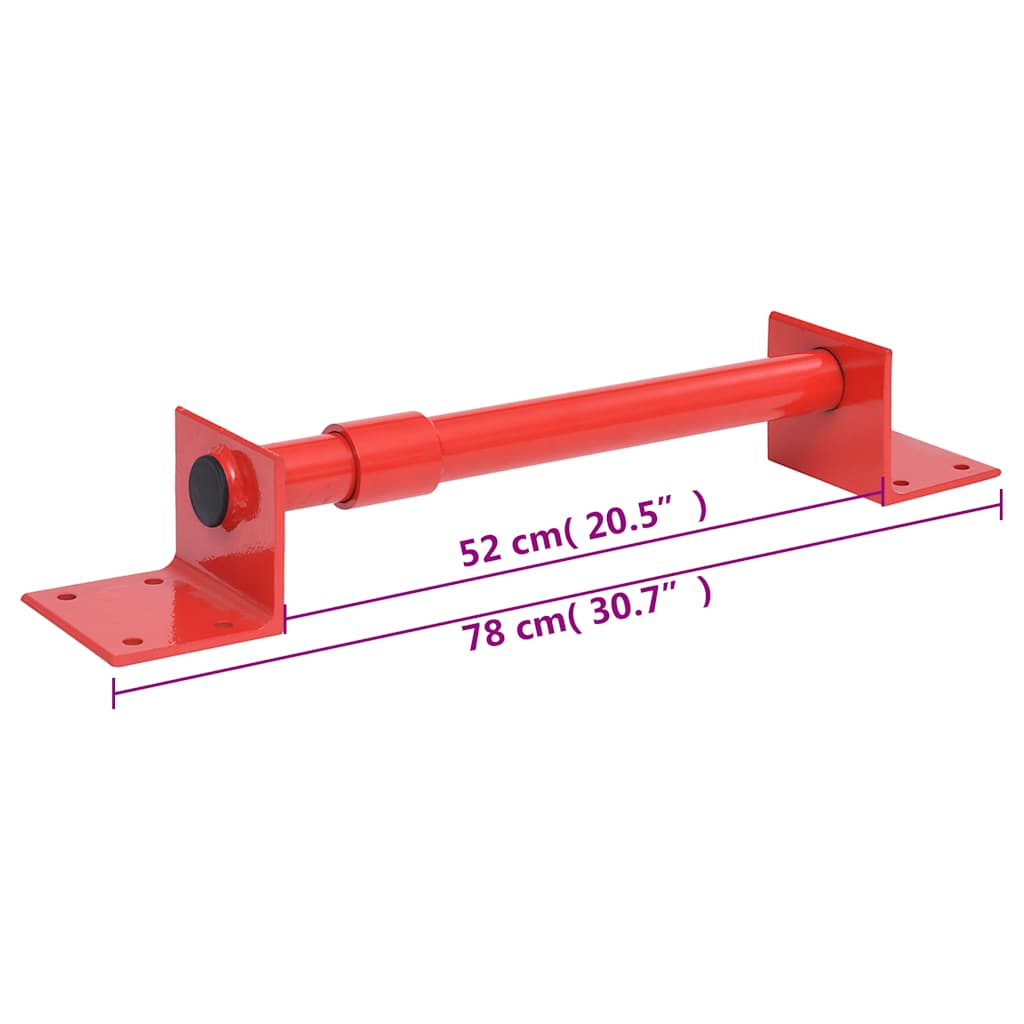

Overall length: 78 cm
Inner length: 52 cm
Steel thickness: 3 mm
Maximum load: 1000 kg
Assembly required: Yes
Delivery includes:
1 x Wall bracket

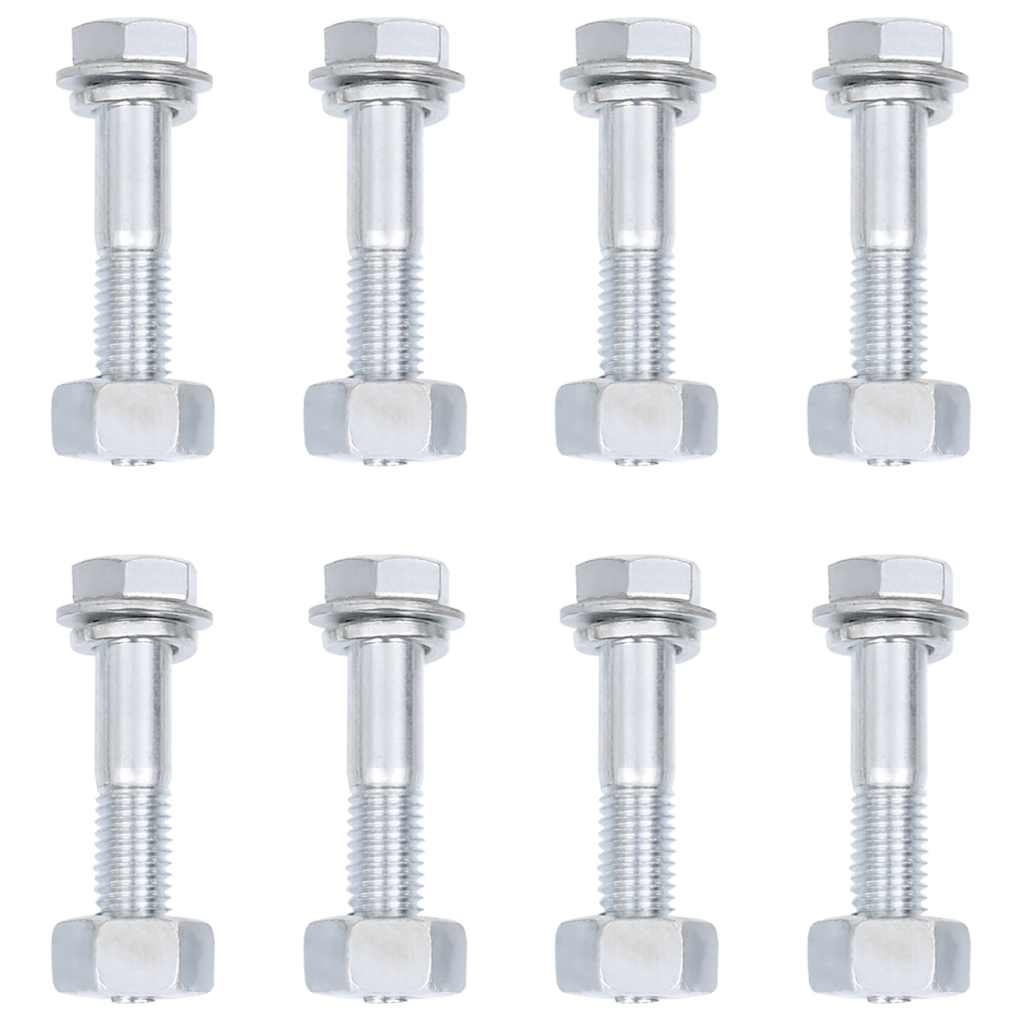

8 x Screws

It must be attached to the wall with 8 M12×120 mm expansion screws. Make sure the wall is a solid supporting structure. Solid walls must provide strength and stability. The wall must be made of solid bricks, stones, concrete, and reinforced concrete. Reinforced concrete and cellular concrete must be layered. The supporting wall must have a strong structure, without voids. Its thickness must be at least twice that of the expansion screws, the thickness must be greater than 22 cm (220 mm), and it must be able to support more than 1.5 tons of weight. DO NOT MOUNT the product on steel sheets or frames, or on walls consisting of hollow or perforated bricks, crusts, and other non-load-bearing structures. Before use, check and confirm that all connecting screws are tight. The bracket parts and the bracket must not have cracks. DO NOT OVERLOAD. Overloading is strictly prohibited. DO NOT LIFT PEOPLE OR ANIMALS. It is strictly forbidden to lift people with this pulley. Do not stand under the pulley to avoid accidents! To avoid accidents, inexperienced people or those unfamiliar with safety instructions should not be allowed to operate the product. IMPORTANT: Only electric hoists are allowed. GPSR
