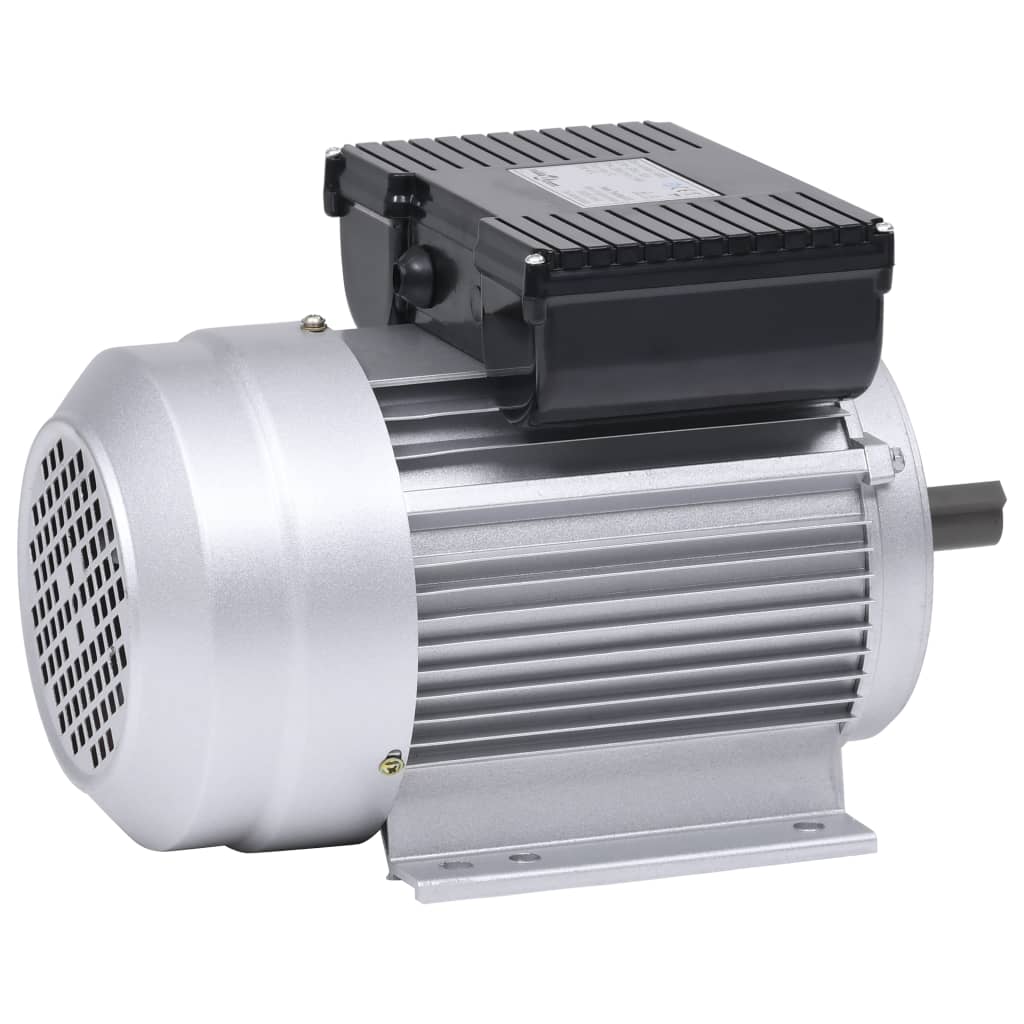

Single-phase electric motor aluminum 1.5kW/2HP 2-pole 2800 RPM

This single-phase electric motor is commonly used in industrial and agricultural production, commercial and household appliances, and other fields, such as compressors, hoists/winches, fans, pulleys, pumps, etc. The asynchronous motor casing is made of durable, robust, and reliable aluminum. The standard motor adopts an IP55 protection rating, which can prevent the accumulation of harmful dust, completely prevent touching the motor, and wash with water without any damage. It is designed for high performance with a maximum speed of 2800 rpm and a shaft hardness of 19 mm. The large fan at one end cools the motor during operating hours, even in dusty or humid environments, reducing energy costs and operating temperature and increasing winding life.

• Color: Silver
• Material: Aluminum

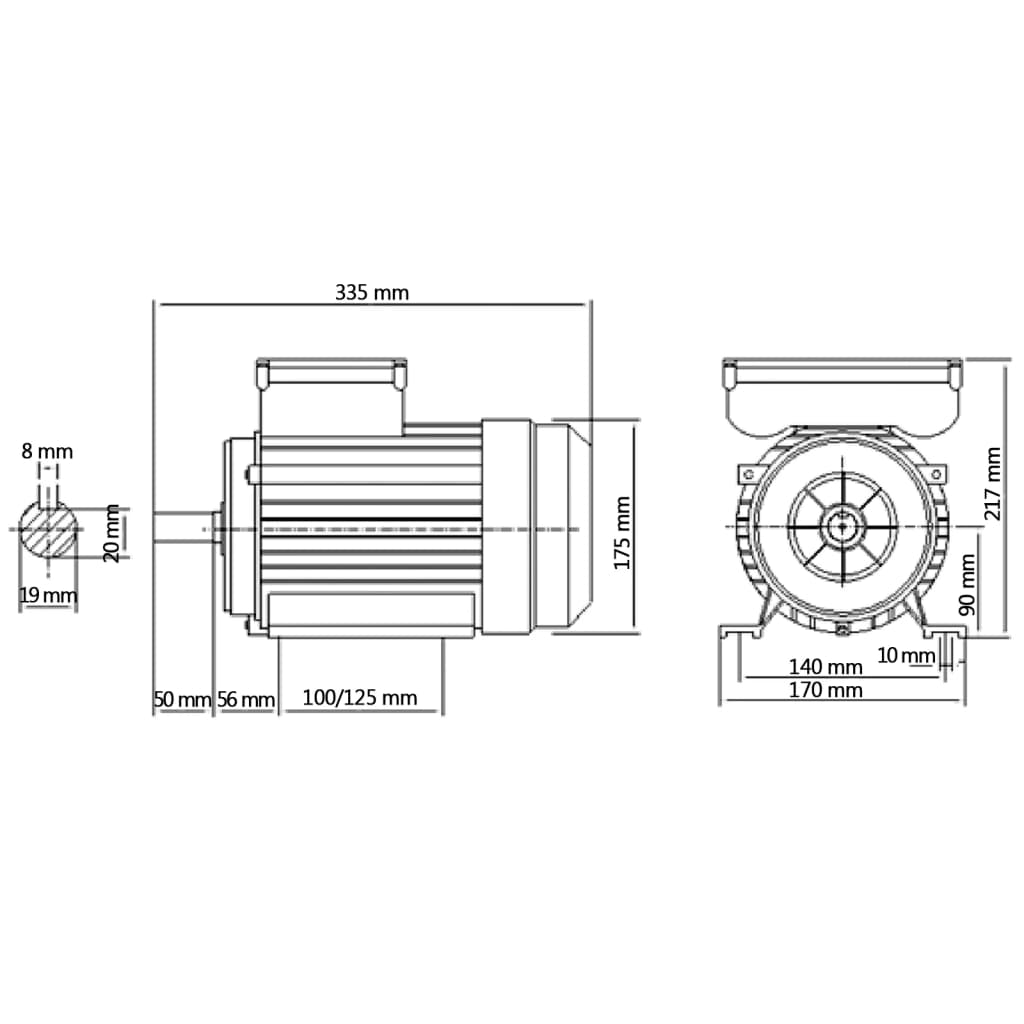

• Dimensions: 335 x 170 x 217 mm (L x W x H)
• Power: 1.5 kW/2HP
• Speed: 2800 rpm
• Pole: 2 P
• Frequency: 50Hz
• Shaft diameter: 19 mm
• Protection class: IP 55
• Base dimensions: 140 x 100/120 mm (L x W)
• Single-phase motor
• Motor with integrated overload protection
• Aluminum casing
