3.75" Self-Centering Wood Lathe Chuck Jaw Set

This 95 mm (3.75-inch) wood chuck set is a mechanical device used to hold a workpiece on a machine tool. Made of steel, this set is durable and sturdy. As a machine tool accessory, it uses the radial movement of the movable jaws evenly distributed on the chuck to hold and position the workpiece. This wood lathe chuck set includes 4 self-centering jaw chucks and interchangeable jaws for spindles, bowls, and workpieces that are difficult to secure. The set fits a 1" x 8 TPI spindle.

• Color: Red and black
• Material: Steel
• Number of jaws: 4
• Self-centering
• Chuck diameter: 95 mm (3.75 inches)
• Carrying case dimensions: 30.5 x 22.5 x 7.5 cm (L x W x H)
• Internal gripping diameter range:

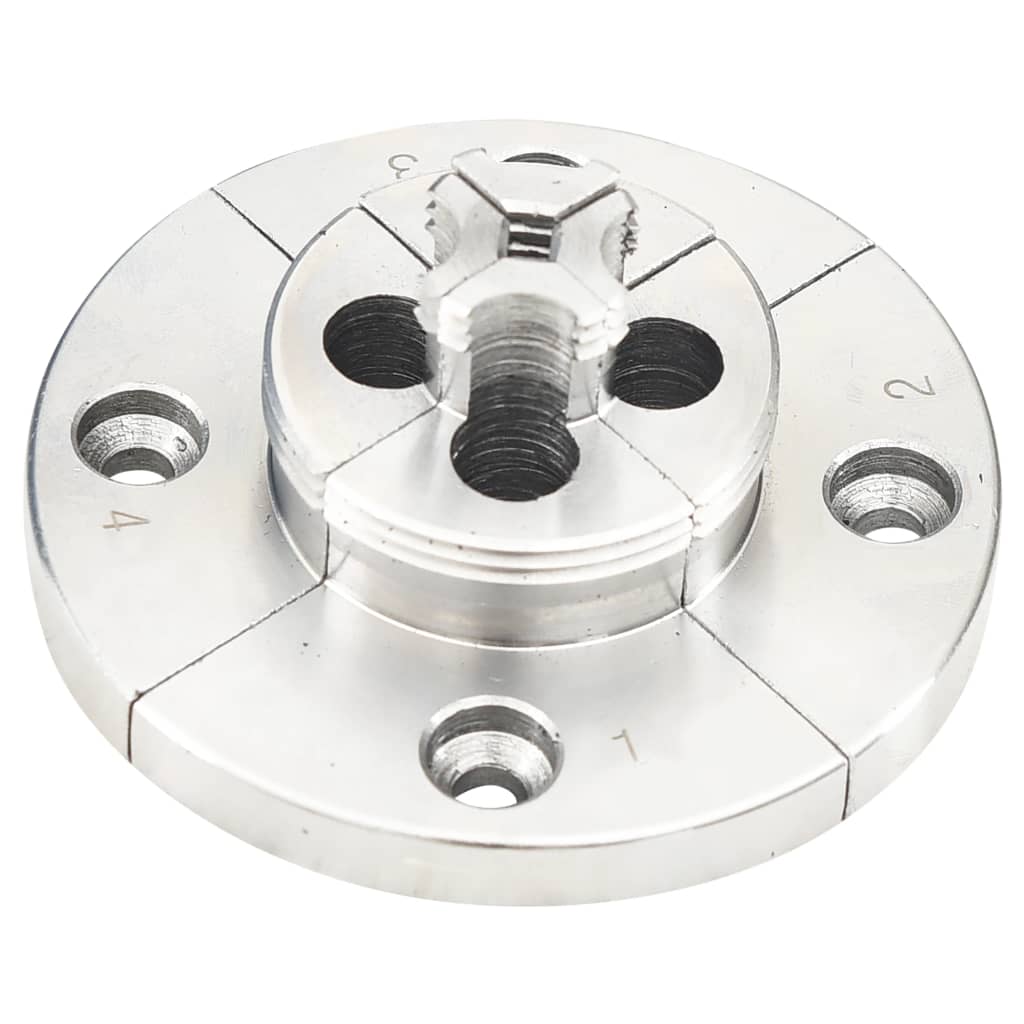

• #1 Stepped jaws: 2.5 mm - 35 mm
• #2 Round jaws: 32 mm - 64 mm
• #3 Round jaws: 76 - 108 mm

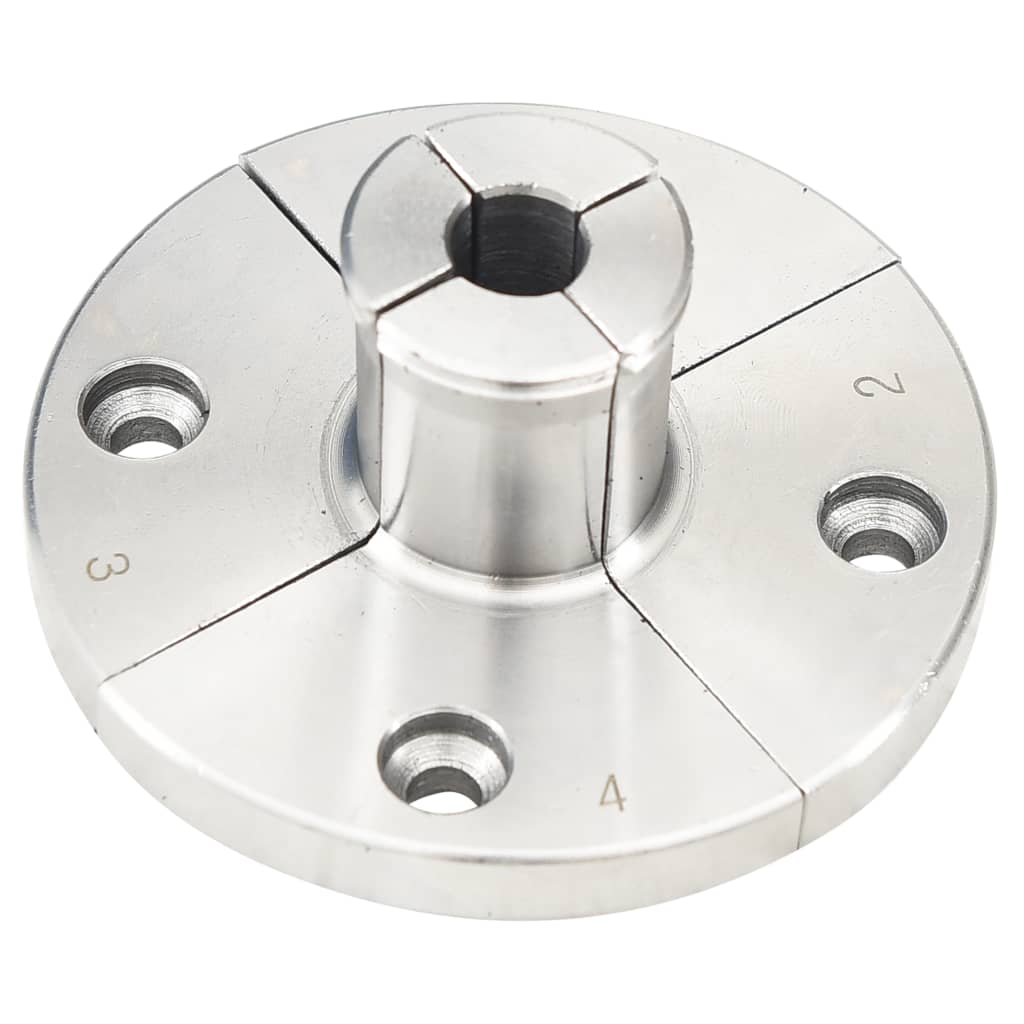

• #4 Pin jaws: 9.5 - 45 mm

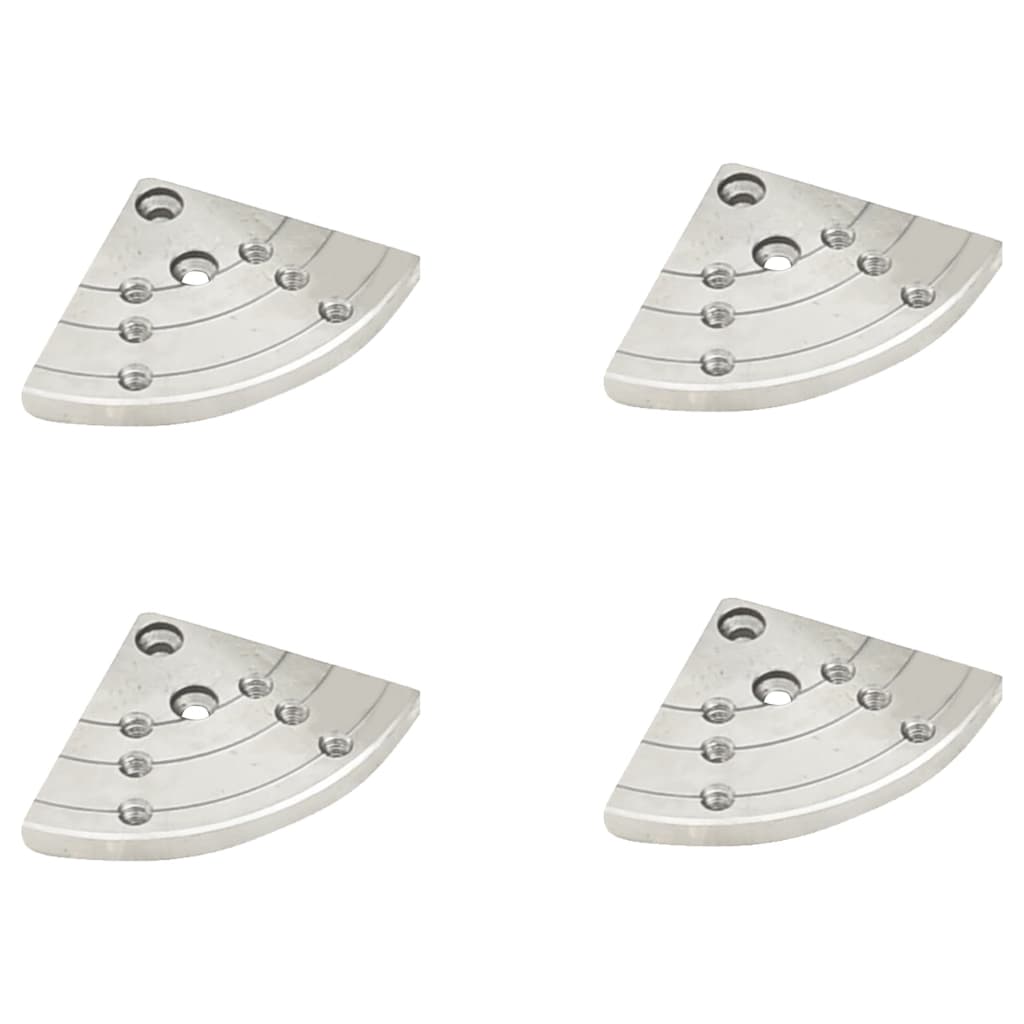

• #5 Flat jaws: 73 mm
• External gripping diameter range:
• #1 Stepped jaws (bottom step): 38 mm - 73 mm
• #1 Stepped jaws (top step): 19 mm - 51 mm
• #2 Round jaws: 45 mm - 80 mm
• #3 Round jaws: 90 mm - 124 mm
• #4 Pin jaws: 25 mm - 60 mm
• #5 Flat jaws: 130 mm
• Indexed backplate: 24 and 36 positions
• Thread: 1" x 8 TPI
• Maximum speed: 3000 R/min
• Net weight: 4.5 kg
• Can hold round and square material
• Assembly required: Yes

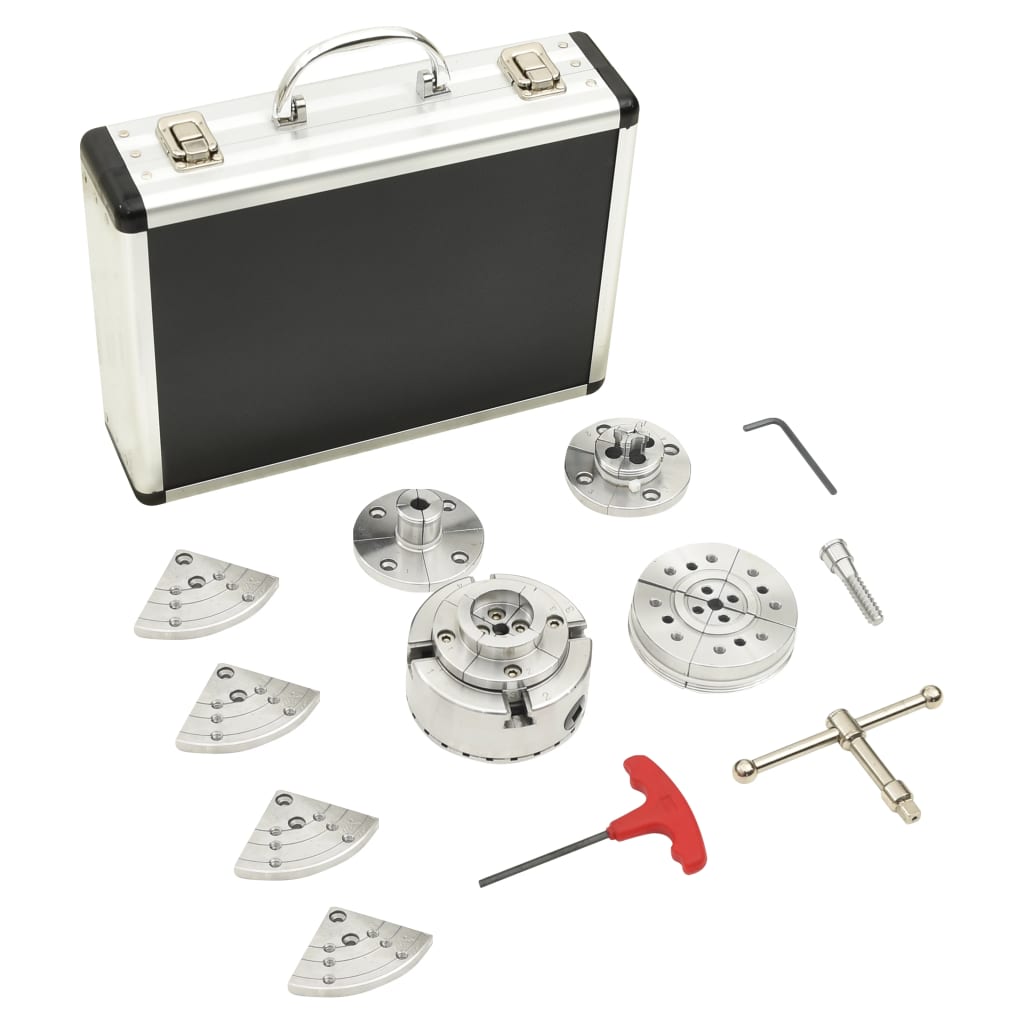

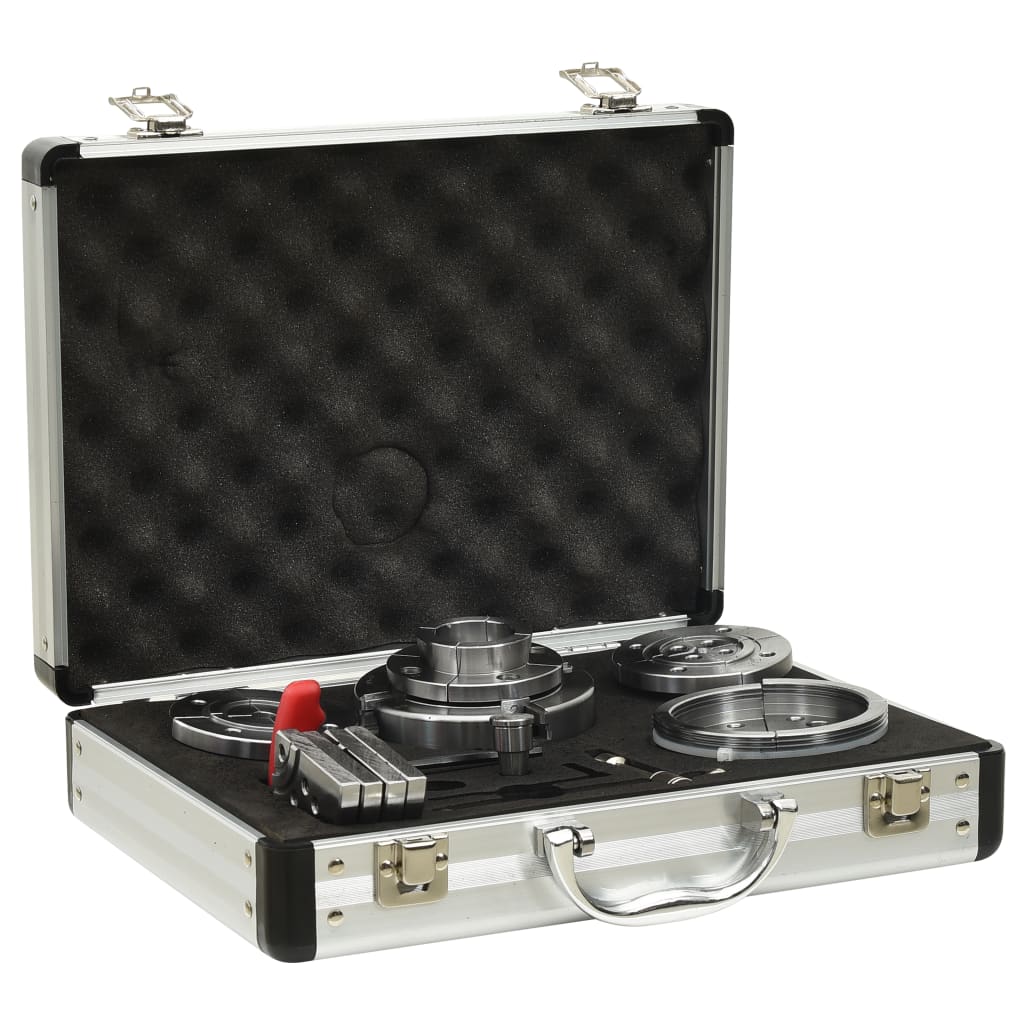

• Delivery contains:
• 1 x Chuck body

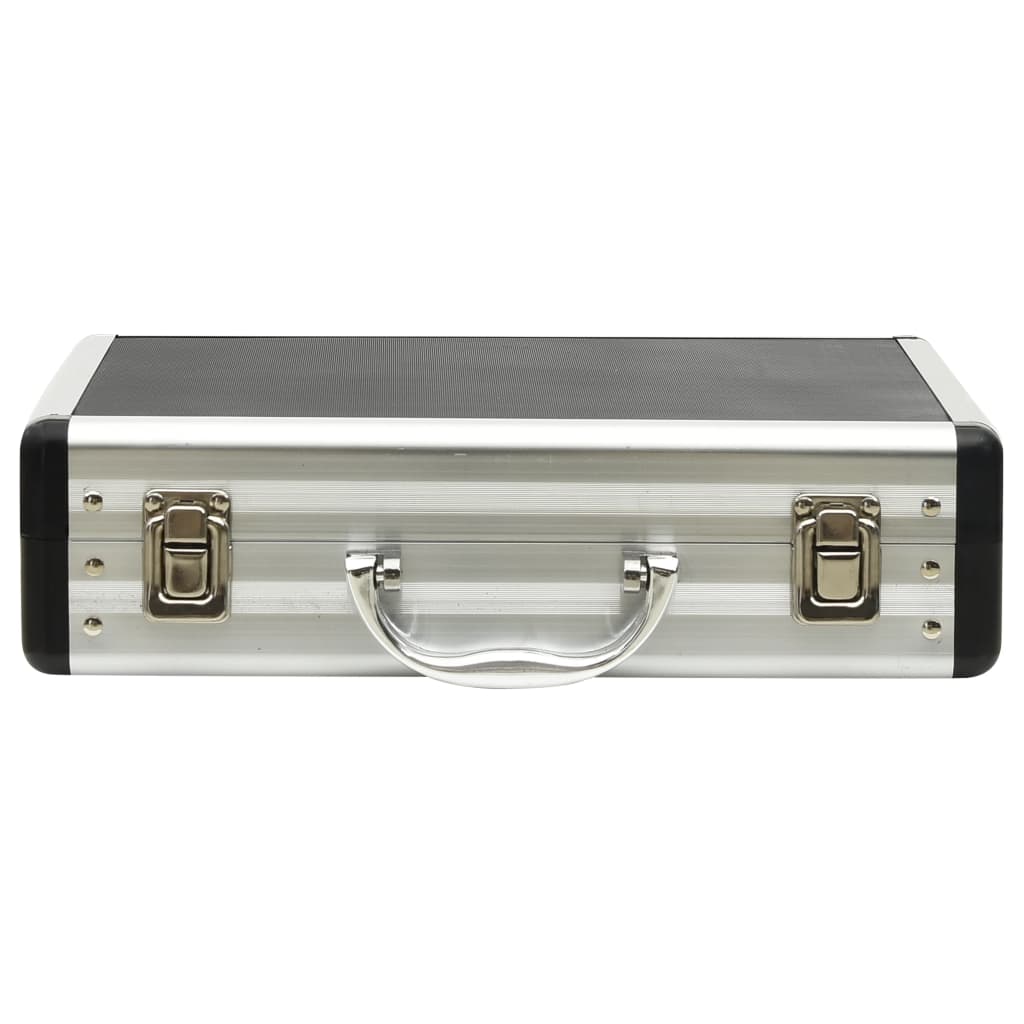

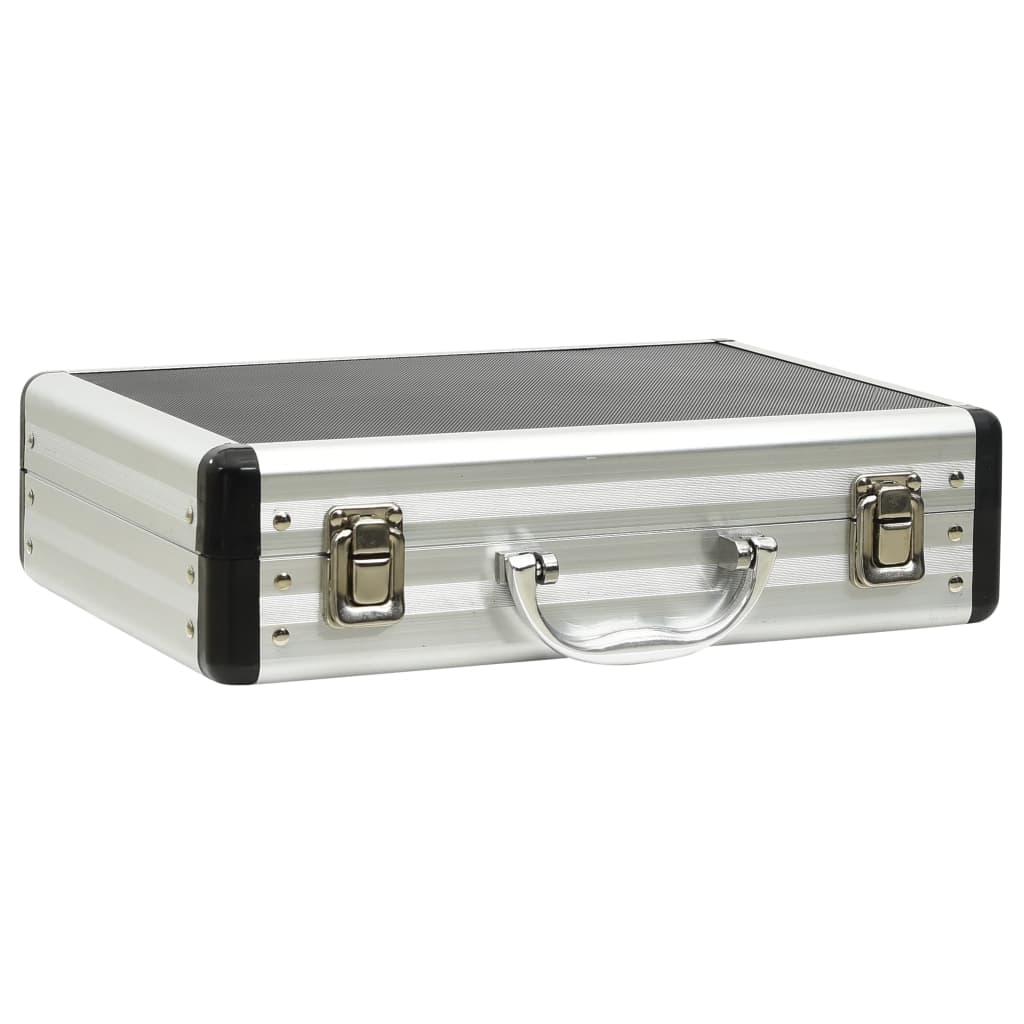

• 1 x Carrying case
• 1 x T-handle hex wrench, 4 mm

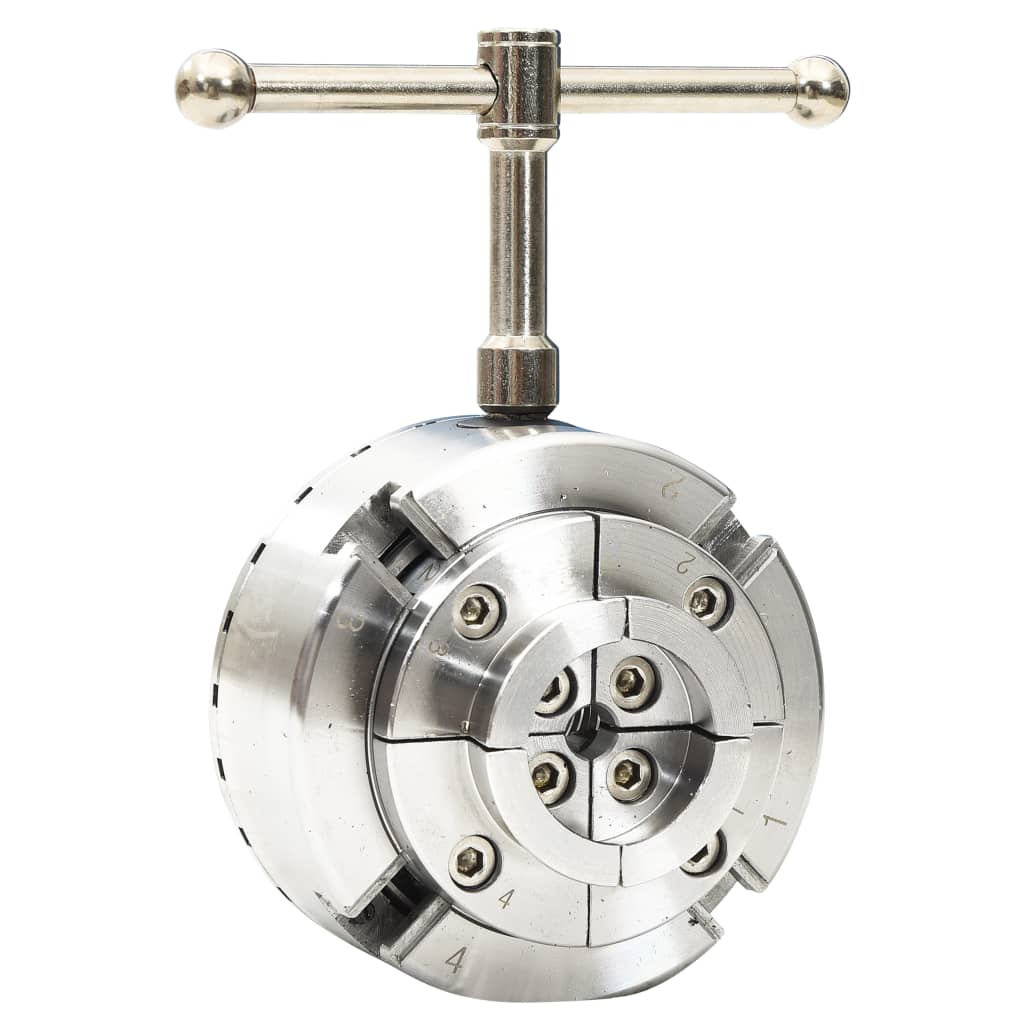

• 1 x Lathe chuck wrench, 8 mm
• 1 x Wood screw
• 1 x Hex key
• 4 x #1 Stepped jaws
• 4 x #2 Round jaws
• 4 x #3 Round jaws
• 4 x #4 Pin jaws
• 8 x Flat-head screws M5-8x8
• 8 x Grip bolts, 13 mm, M6-1x6
• 8 x Grip bolts, 18 mm, M6-1x6
